All parametric vaults

All parametric vaults

Price: 400,00 EUR
Compatibility:
Quantity:

The ArchiRADAR parametric vaults (complete collection) have been conceived to speed up the designer's work, thanks to the possibility of managing many parameters.
The four points of the vault are all editable in free forms even independently in height.

The main types of arches are available such as:
- semicircular
- segmented
- gothic
- elliptical

Up to 3 thickness skins can be defined, independent in the surface and in the section fills.
The lunettes are fully editable with uniform or independent parameters.
The symbol in the floor plan offers different variations of representation.

Most of the parameters can be managed through editable points both in the 3d and 2d window.
A graphic interface of the object helps the designer in managing all the features.

HERE you can download a PDF

HERE you can download a DEMO version (the object is displayed like wireframe, not solid)

ALERT - LIMITS OF USE: This object is editable and adjustable from the ARCHICAD 19 version up to the current version at the time of purchase. When a new version of ARCHICAD is released and you decide to switch to it, you will need to download the paid update of the vault from the ArchiRADAR shop at a reduced cost; you will be able to use a discount code received at the time of purchase. If you do not proceed with the update, the object can be viewed and used for the documents but it will no longer be editable and adjustable.


00

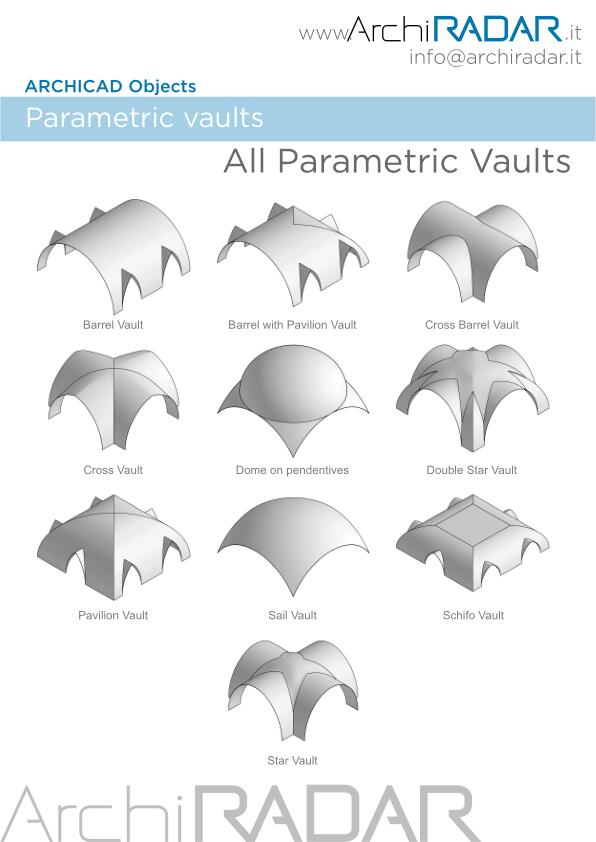

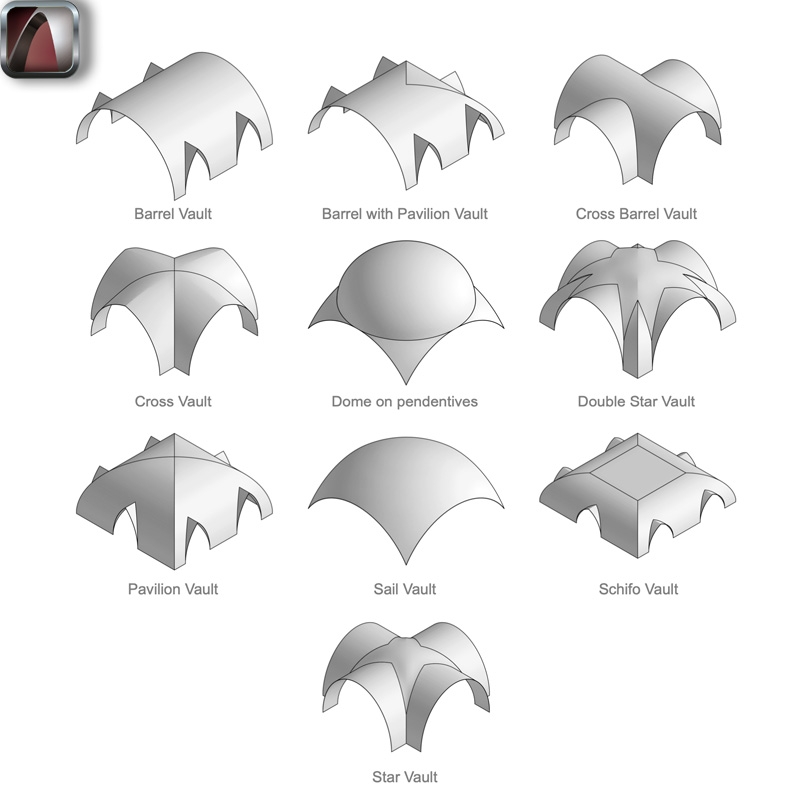

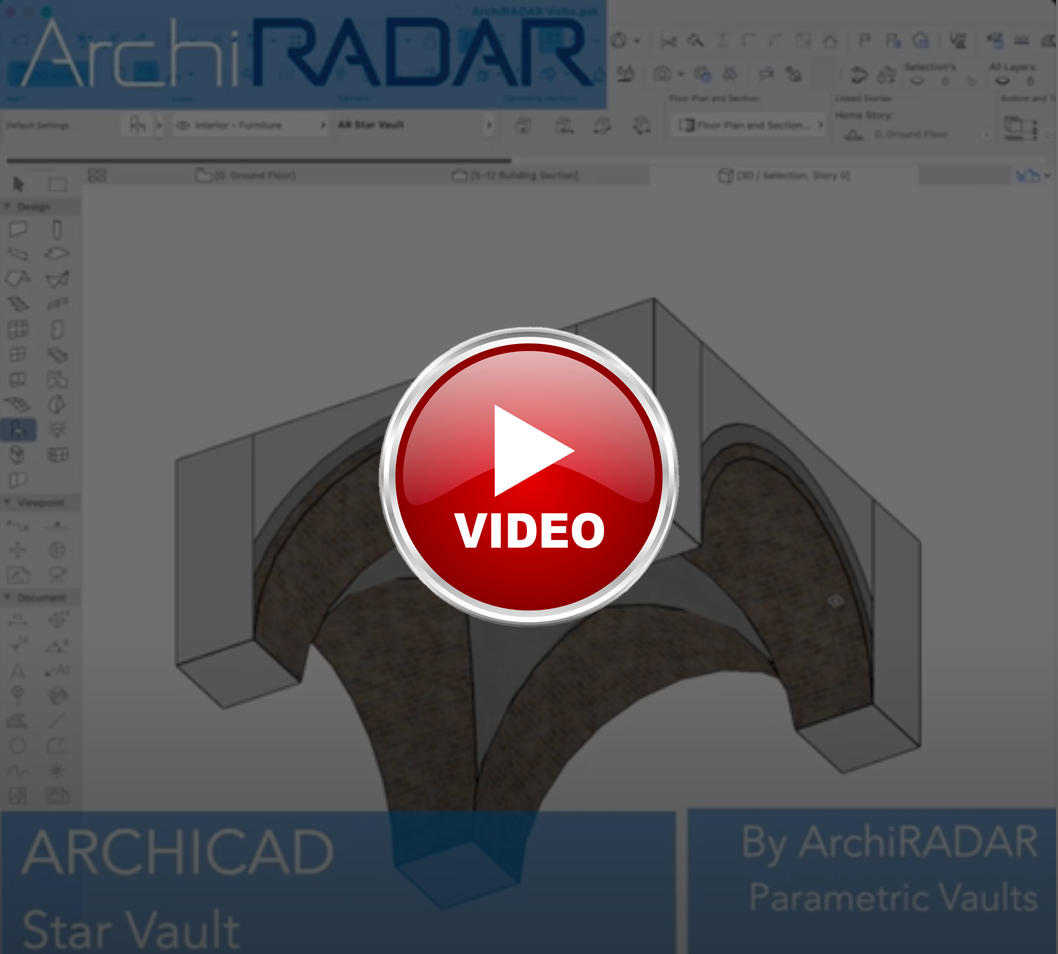

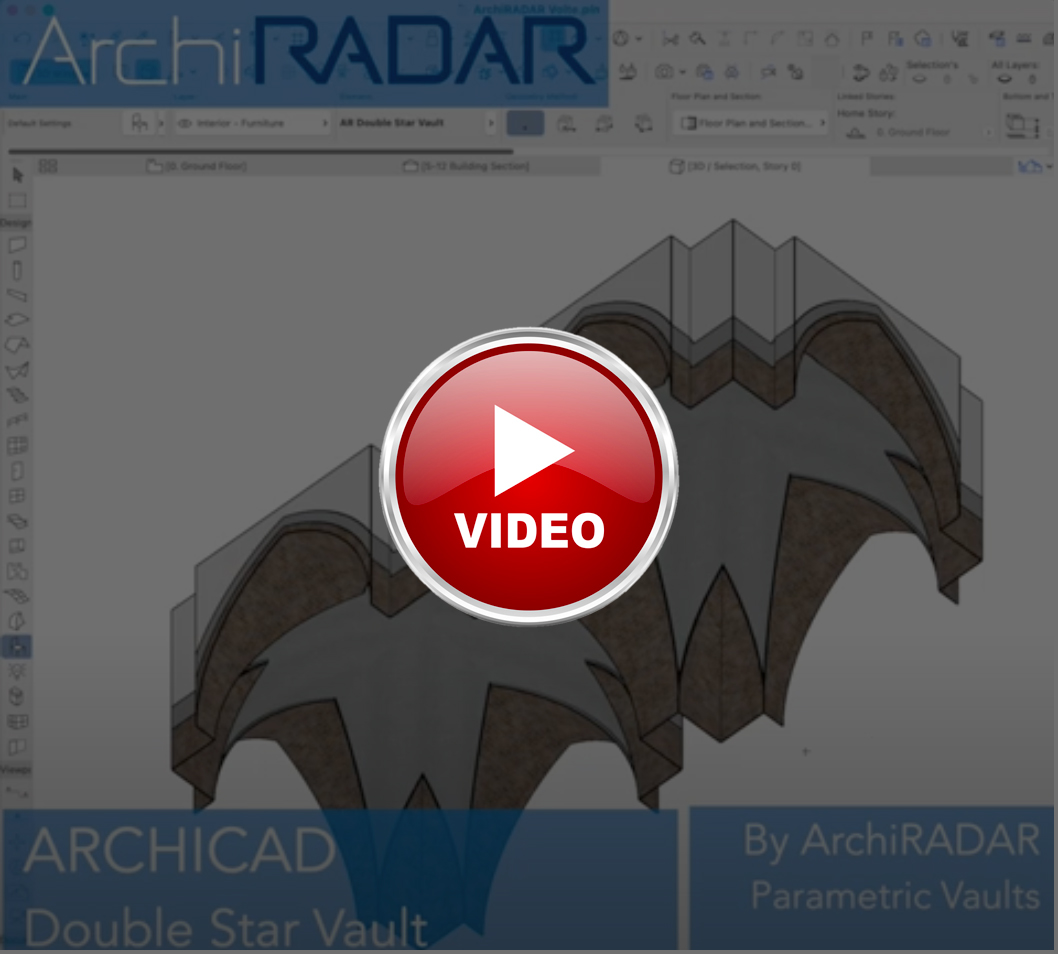

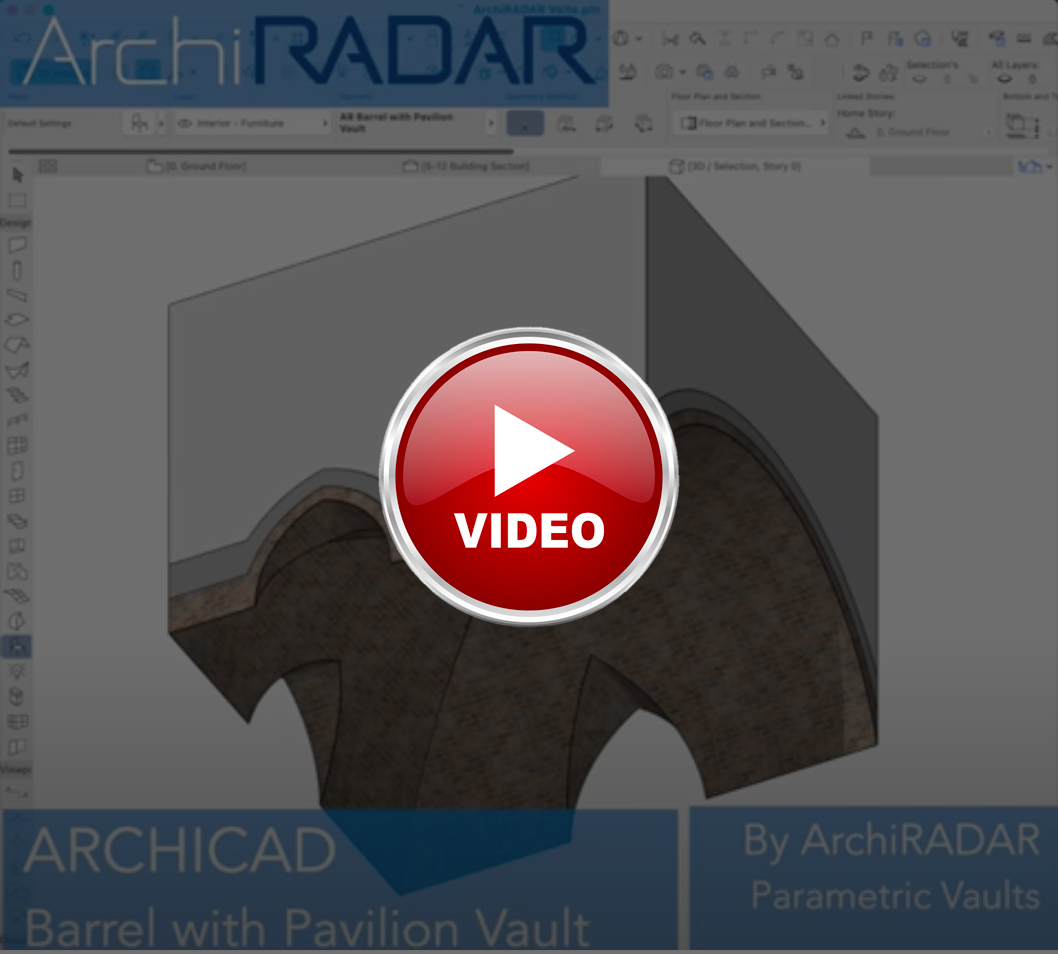

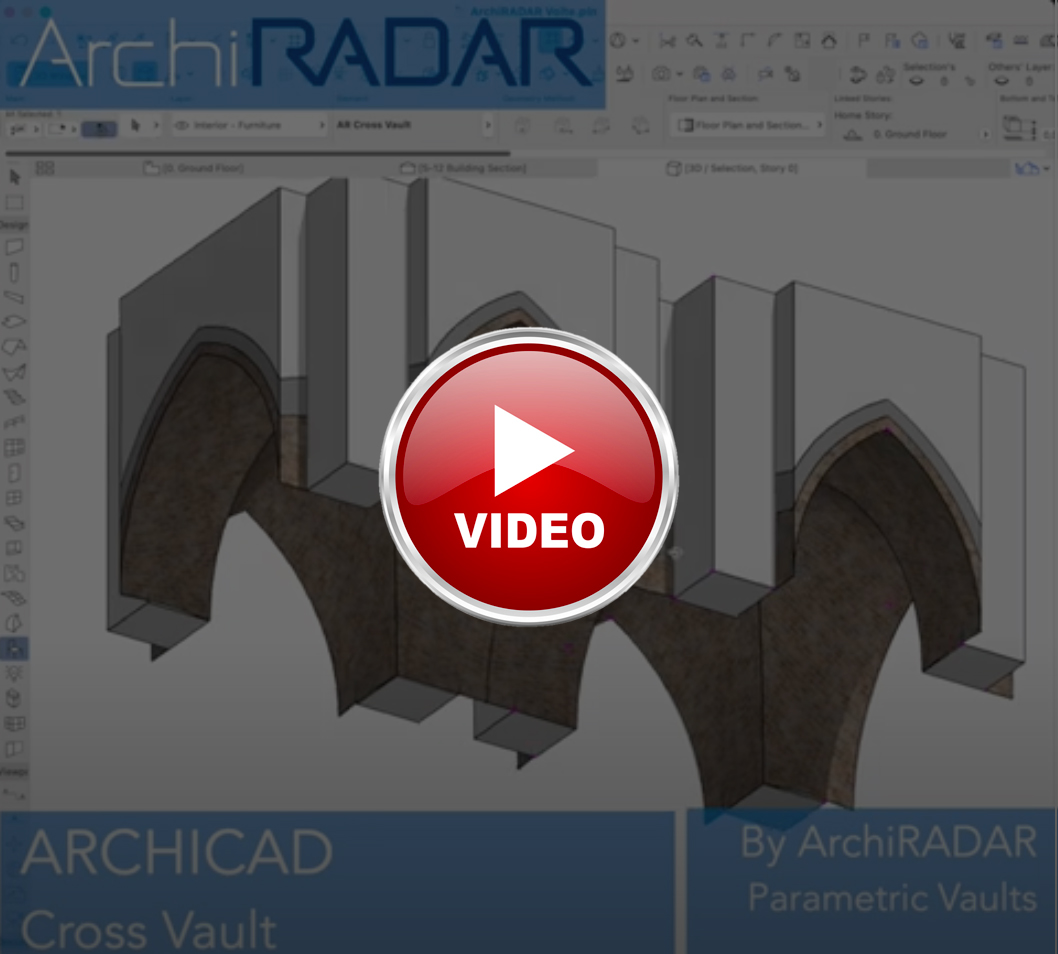

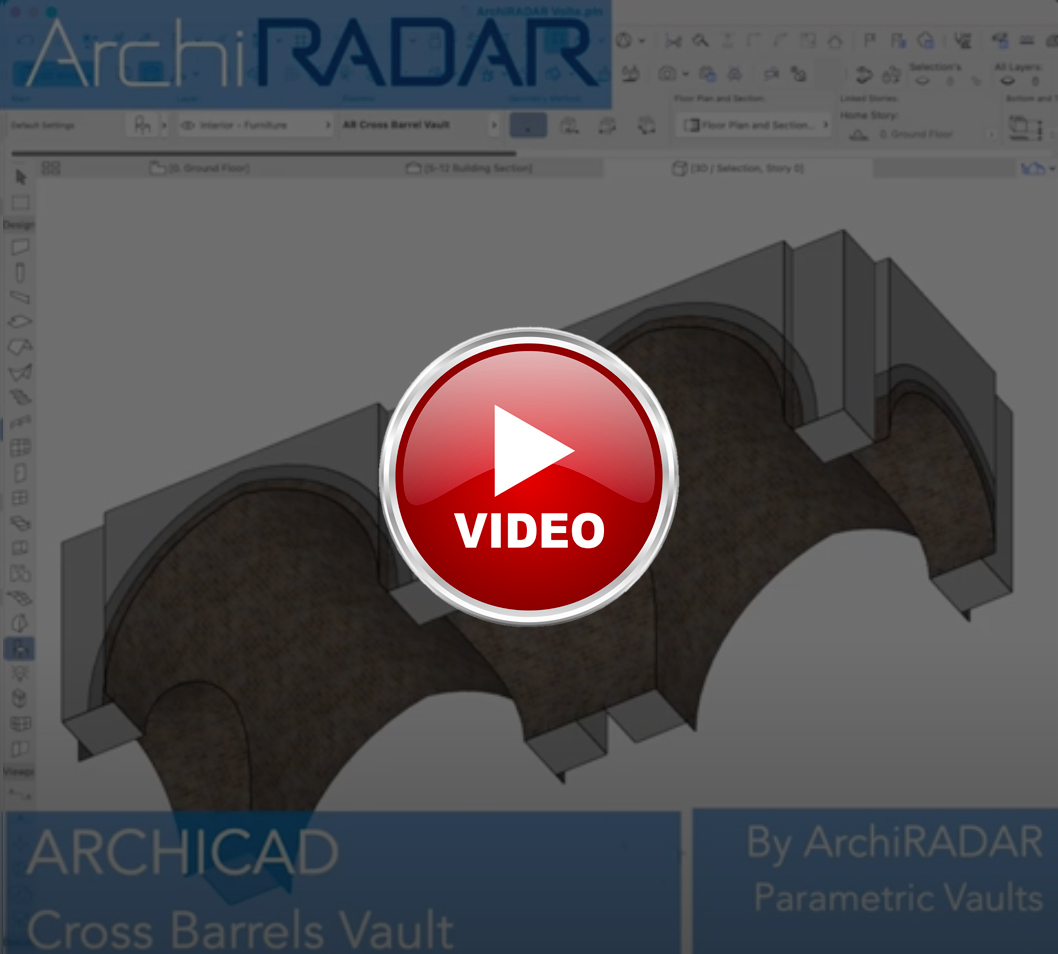

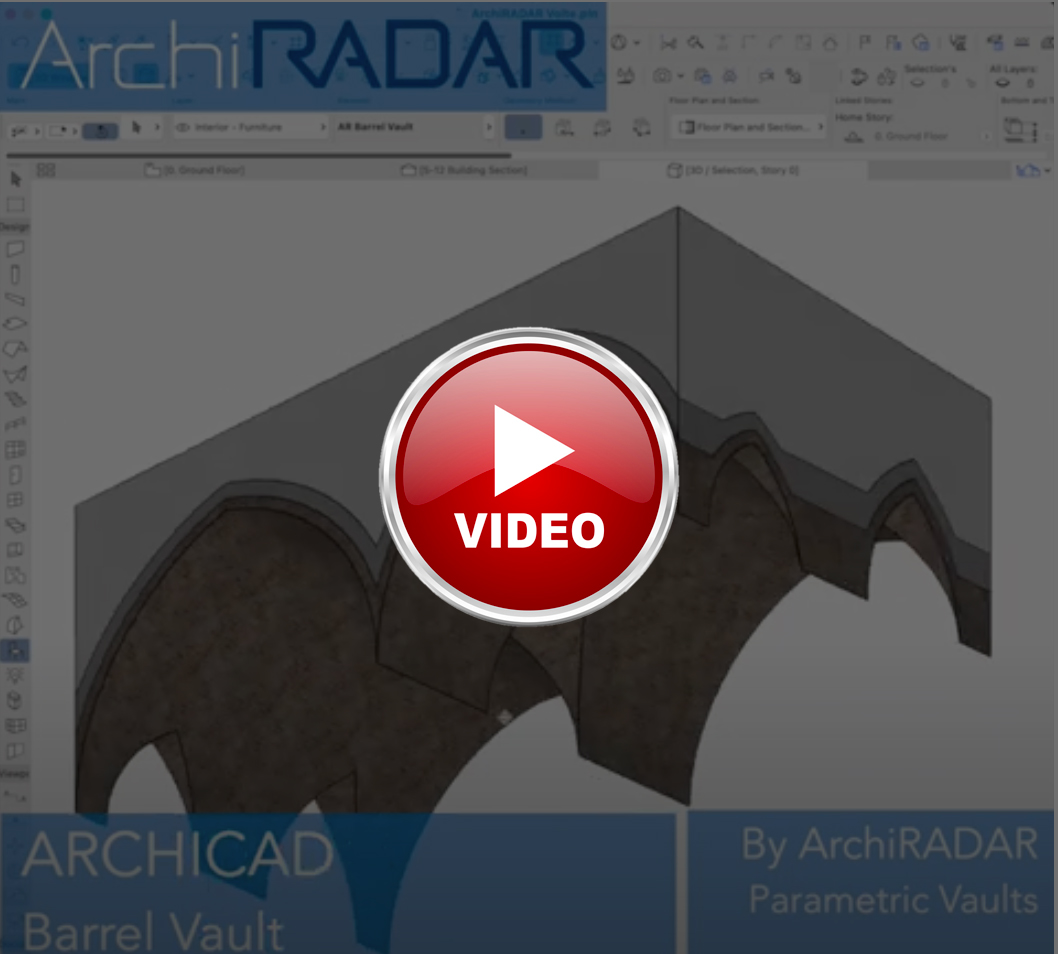

barrel vault  barrel with pavilion vault  cross barrels vault  cross vault  dome on pendentives vault  Double star vault  pavilion vault  sailt vault  schifo vault  star vault
