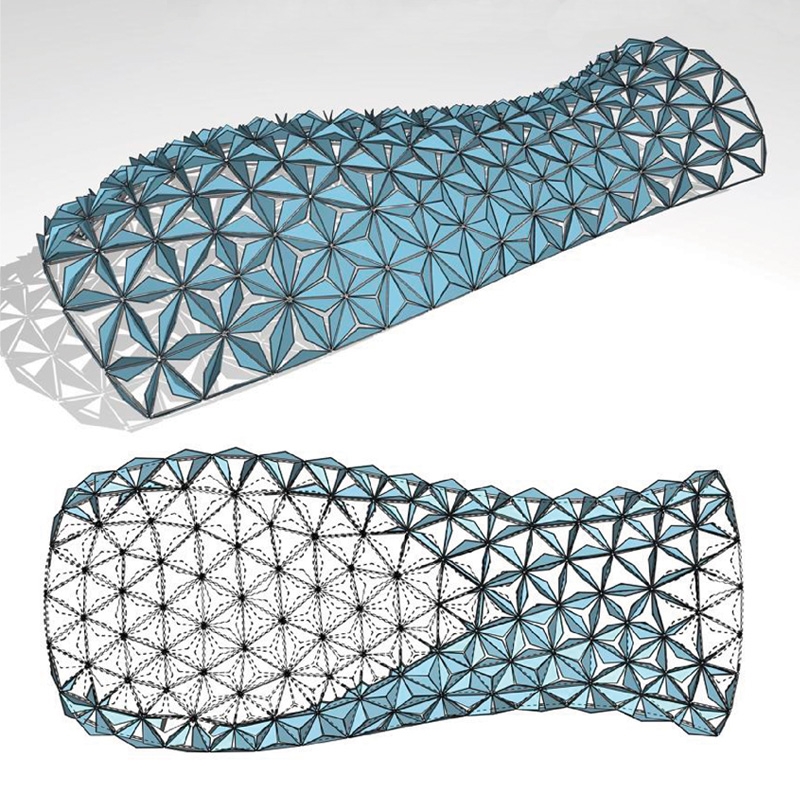

Responsive facade

The ArchiRADAR responsive facade objects have been conceived to speed up the designer's work in computational designs.

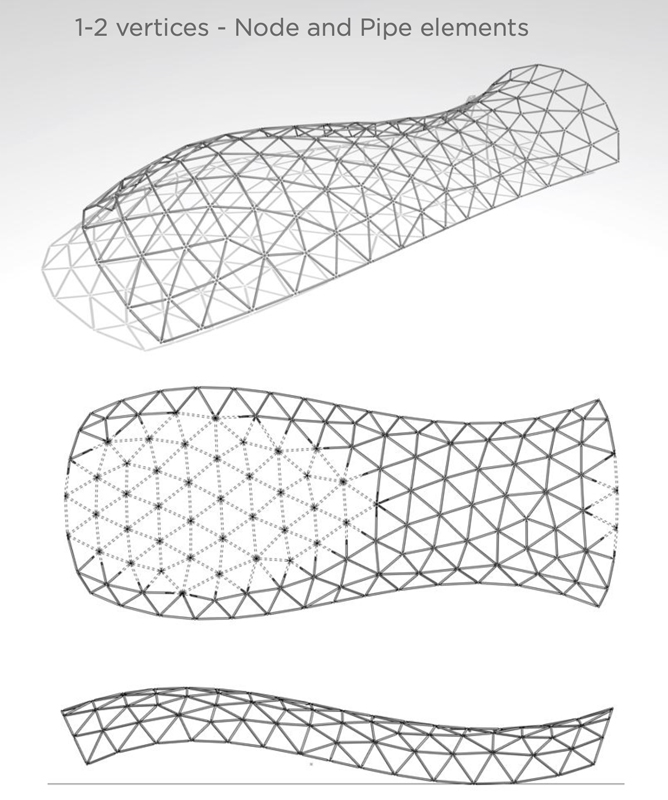

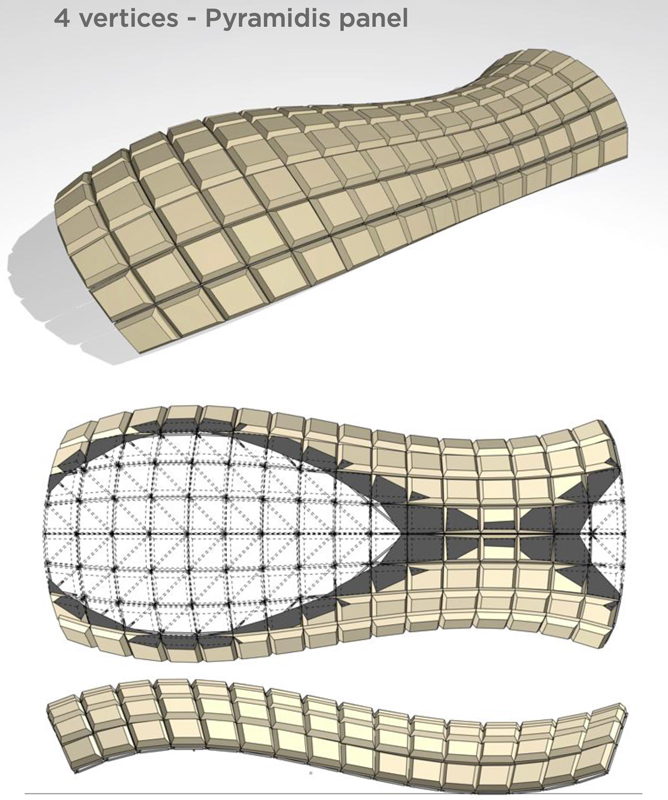

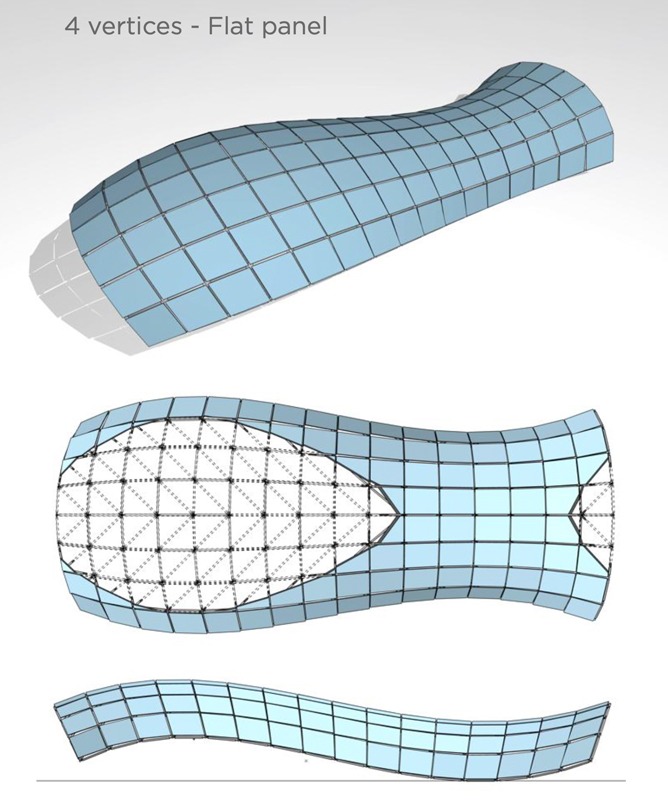

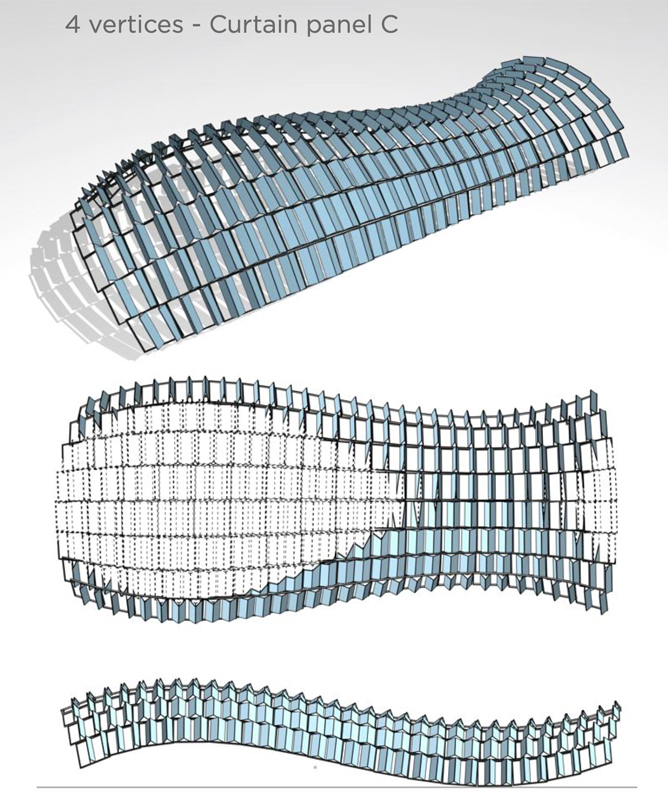

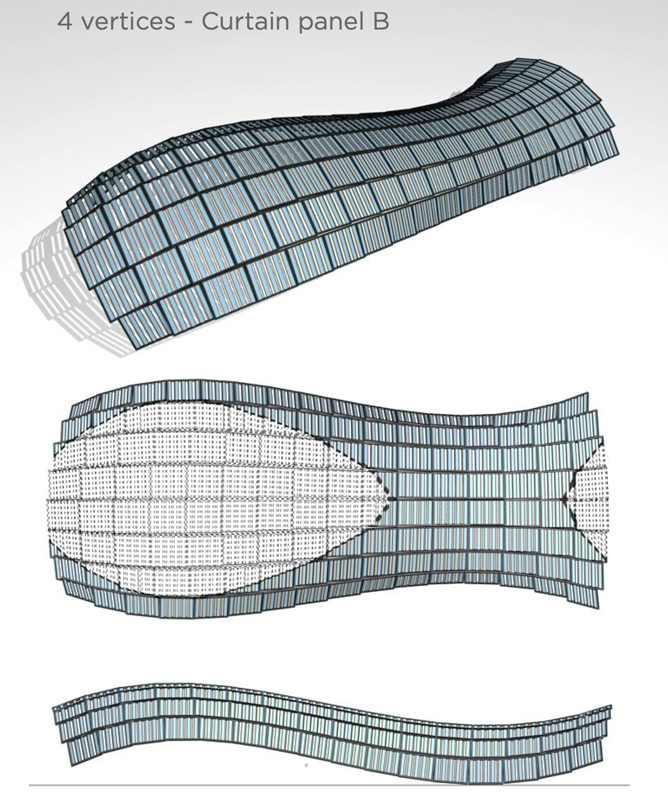

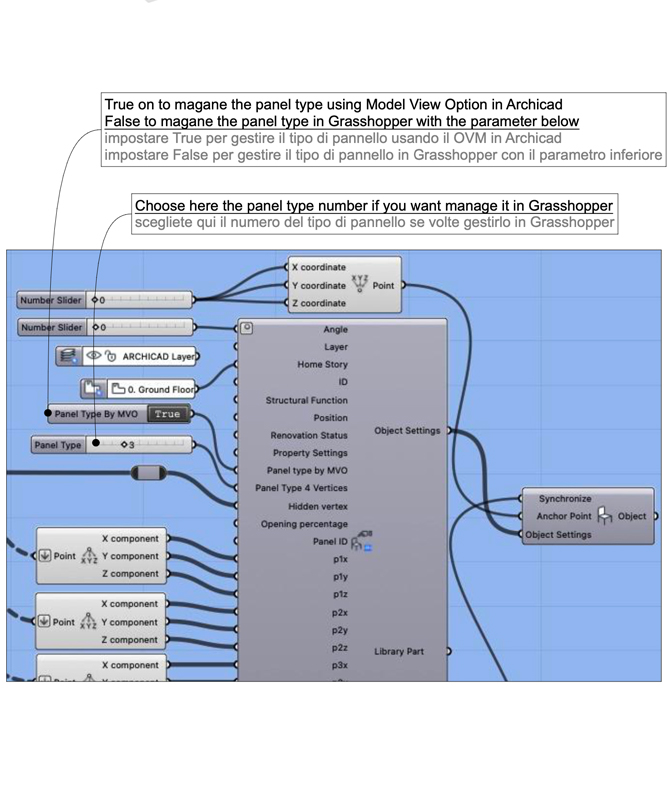

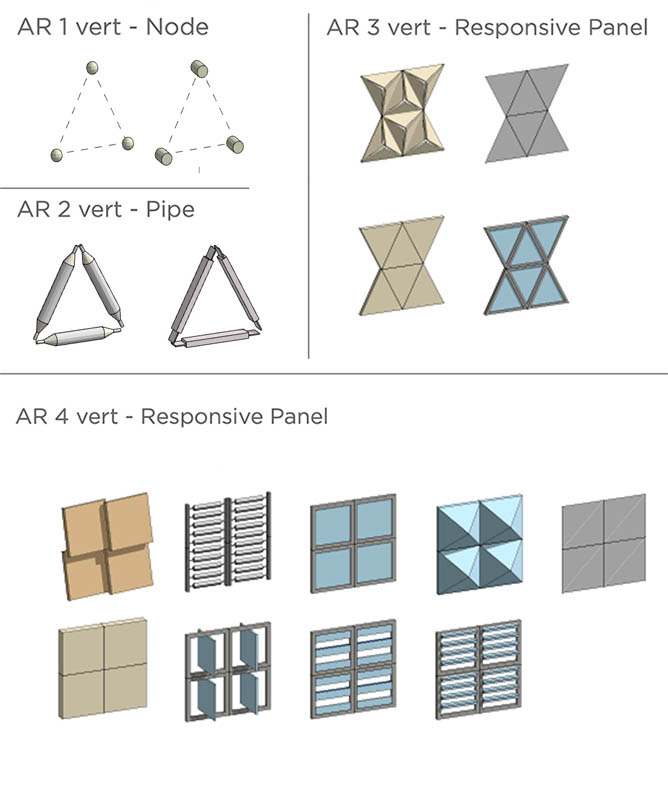

The responsive panels can be managed directly in Grasshopper using the Archicad connection; You will be able to create complex design with panels and pipes, starting from Rhinoceros using a simple surface.

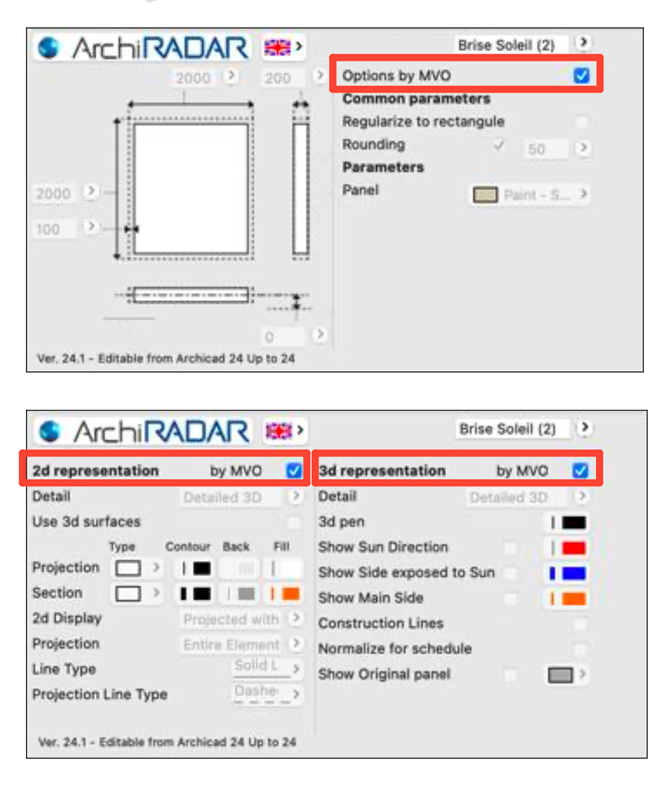

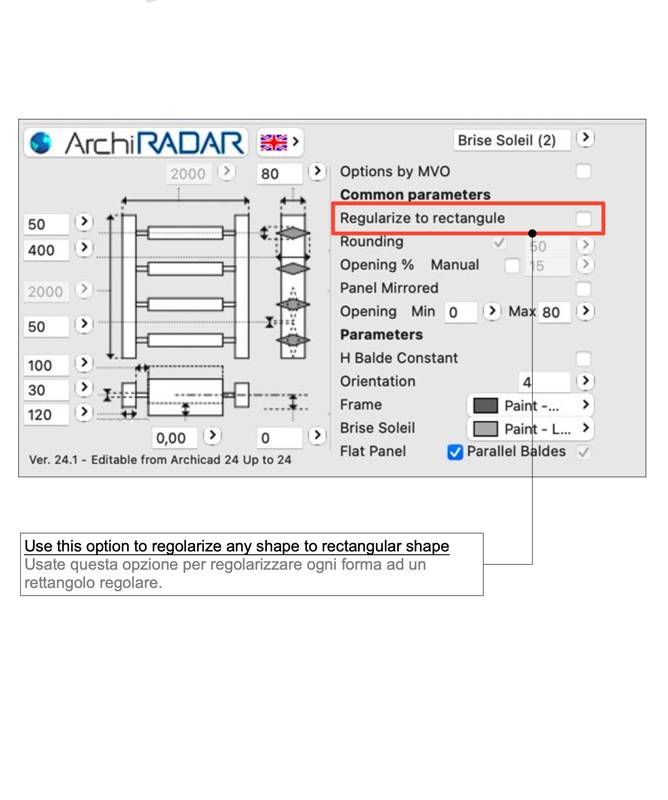

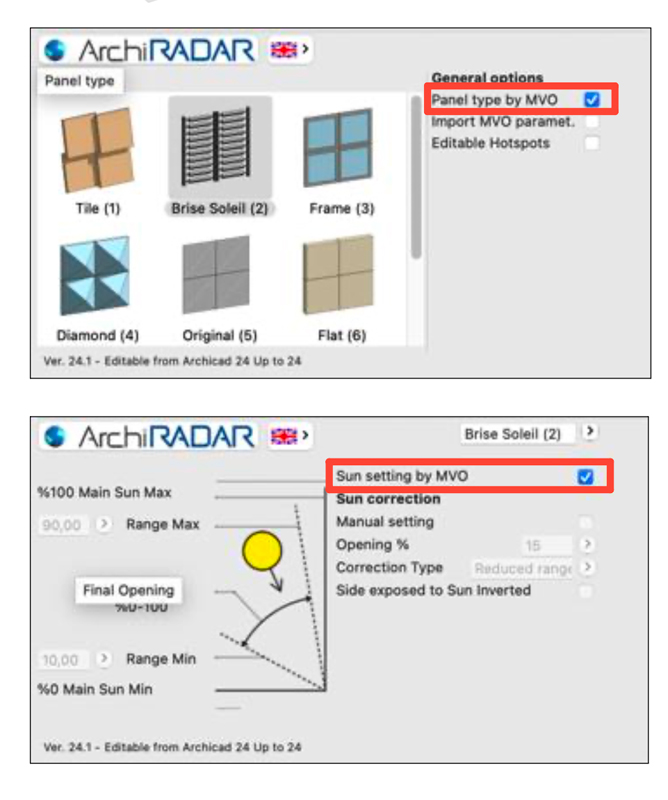

A graphic interface of the object helps the designer in managing all the features.
Using MVO Model View Option you will be able to manage the setting of the objects with only few clicks without selecting and editing every single object.
You will be able to create also schedules grouping similar objects under the same column.

FEATURES:
- You need base knowledge of Archicad, Rhinoceros and Grasshopper
- You need Archicad 24 or high
- You also need Rhinoceros 7 with Grasshopper
- Install the connection plug in to connect Archicad with Rhinoceros Grasshopper

HERE you can download a PDF

HERE you can download a DEMO


ALERT - LIMITS OF USE: The ArchiRADAR Responsive objects are editable and adjustable from the ARCHICAD 24 version up to the current version at the time of purchase. When a new version of ARCHICAD is released and you decide to switch to it, you will need to buy the updated library from the ArchiRADAR shop. If you do not proceed with the update, the object can be viewed and used for the documents but it will no longer be editable and adjustable. You can't edit also MVO.
